Manual Waste Tire Recycling System

Overview of Manual Tire Recycling Line

Manual waste tire recycling machine is a semi-automated tire processing system designed specifically for small and medium-sized investors, startups, and resource-limited areas. Compared to fully automated production lines, this equipment combines manual operation with mechanical processing to transform waste tires into high-value rubber granules.

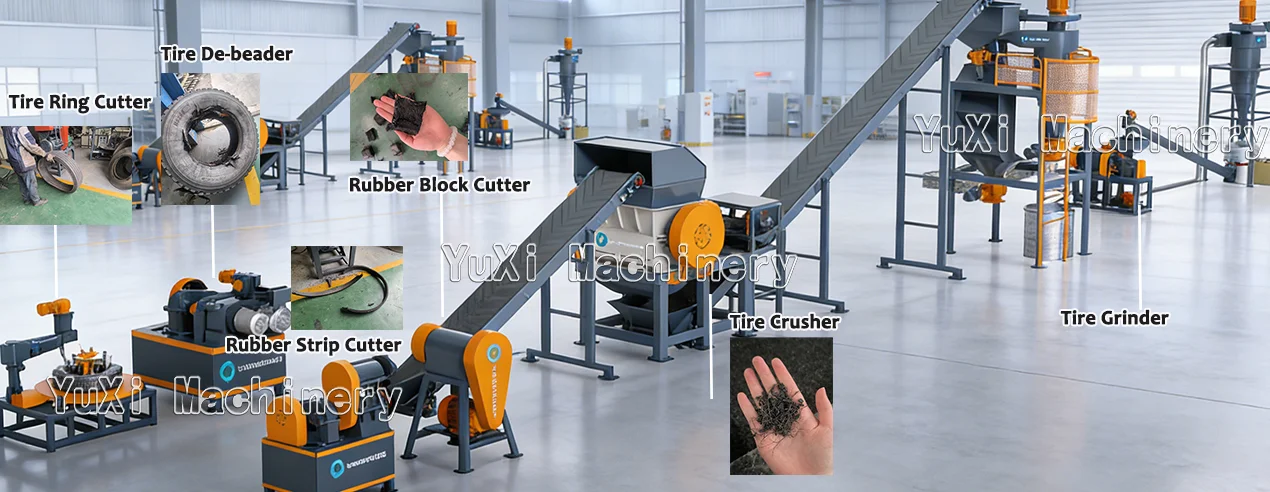

Processing of Manual Tire Recycling Line

Step 1: Tire Steel Wire Removal
Push the tire into a manual/semi-automatic steel wire removal machine. Using a hydraulic or lever-assisted system, the steel wires in the tire bead are completely separated.
Step 2: Step-by-Step Cutting
Tire Bead Cutting Machine: With manual assistance, the tire with the steel wires removed is cut into rings.
Tire Strip Cutting Machine: Cuts the tire rings into strips 2-5 cm wide.
Tire Block Cutting Machine: Cuts the tire strips into blocks 2-5 cm long.
Step 3: Rubber Granulation
The cut rubber blocks are fed into a manual feed pelletizer. Through mechanical pressure or shearing, they are processed into uniform rubber granules of 5-20 mm.

Equipment selection

As a provider of overall solutions for waste tire recycling equipment, YUXI Machinery insists on providing customers with efficient, energy-saving and environmentally friendly shredding equipment and services.

With nearly 30 years of experience in shredder manufacturing, YUXI Machinery has launched waste tire steel wire debeader, tire shredder,waste tire cutter,tire raper,tire grinder, which can meet the fineness requirements of users for processing different materials. The products are stable in operation, economical in investment, and green and environmentally friendly!

Tire Ring Cutter

Handle the bead wire of tyres large than 1200mm

Tire Strip Cutter

Shear the tire to strip type rubber

Tire Block Cutter

Shear the rubber strip into 40-50mm rubber block

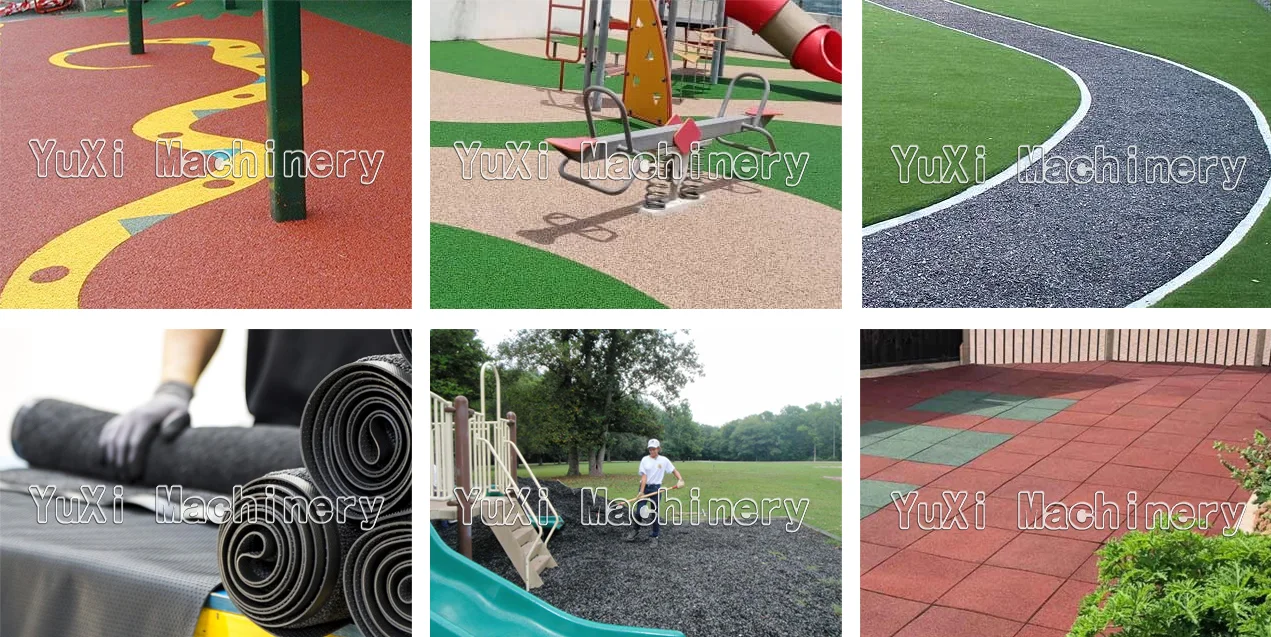

Application of Rubber Powder and Granules

Sports field filling: Rubber granule filling for school playgrounds and community fitness areas
Landscape materials: Covering for park trails and residential green belts
Simple anti-slip mats: Anti-slip treatment for factory workshops and warehouse floors
Rubber paving tile raw materials: Production of rubber paving tiles for courtyards
Orchard mulch: Maintains soil moisture and inhibits weed growth.
